All information provided without any guarantee! Subject to change!
We will make an effort, however, to provide all of the information about the materials used for the competition as correctly and completely as possible.
In general, however, the rules of RoboRAVE International shall apply.

Jousting Challenge

Track

  • Once you have received your registration confirmation and the registration fee has been paid , a track (for the Jousting or Line Following challenges) can be picked up at Innocel, Marie-Curie-Str. 8, 79539 Lörrach.
  • Unfortunately, we are unable to publish the print file for legal reasons.
  • For a description of the track, go to the RoboRAVE International Website

Knight

Aluminium bottles, like the Sigg Traveller €10-20
Volume 0.6 l
Lance
Round wooden dowel from a building supplies store, like Bauhaus €1.50
Length 30cm
Diameter 4-6 mm
A disc is placed on the top, like a LEGO Technic Gear 40 Tooth, light grey 20160524_111217.jpg (Durchmesser Scheibe)
Diameter ~4 cm
Knight’s PVC shield
Height 9 cm 20160524_111204.jpg (Schild Höhe)
Width (top) 7.5 cm 20160524_111157.jpg (Schild Breite)
Distance to tip of lance ~23 cm 20160524_111123.jpg (Lanze Länge)
PVC tube from a building supplies store, like Bauhaus 20160524_143853.jpg (PVC-Schlauch Länge)
Diameter ~10-20 mm
Cable ties from the building supplies store 20160524_143939.jpg (PVC-Schlauch Durchmesser)
Length ~20 cm
Saddle
Ferromagnetic canning jar lid from a chemist's, like from DM-Drogeriemarkt (also available in a 4-pack without the jar) IMG_20160919_181926.jpg (Sattel)
Diameter ~8.5 cm
Disc magnets made of ferrite Ferromagnet 800g Haftkraft
Quantity 1
Holding force ~800g

a-MAZE-ing Challenge

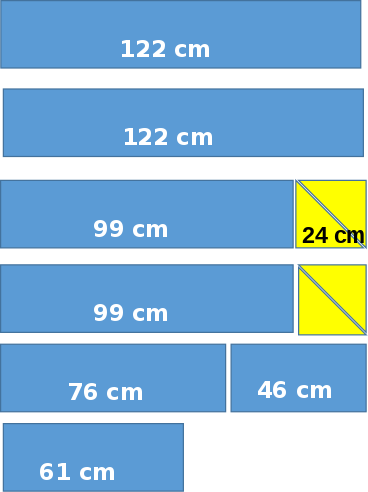

Wooden boards cut to size at a building supplies store (or by a woodworker), cut from a 3-layer panel made of spruce, for example
Thickness 19 mm
Width 24 cm
Lengths for age group 1 2 x 122 cm
1 x 99 cm
1 x 76 cm
1 x 61 cm
1 x 46 cm
1 x 76 cm
Age group 2 (additional) 1 x 99 cm
Isosceles triangles made from the same wood
Angle (tip) 90°
Length of sides 24 cm
Quantity 4
Feet cm
4 122
3.25 99
2.5 76
2 61
1.5 46

Line Following Challenge

Track

  • Once you have received your registration confirmation and the registration fee has been paid, a track (for the Jousting or Line Following challenges) can be picked up at Innocel, Marie-Curie-Str. 8, 79539 Lörrach.
  • Unfortunately, we are unable to publish the print file for legal reasons.
  • For a description of the track, go to the RoboRAVE International Website

Tower

Cardboard box, like PACKSET Size L available from the German Federal Post Office. Getting the right height is crucial.
Height ~19-20.0 cm1
Width At least 10 cm, we use 35 cm
Depth At least 10 cm, we use 45 cm
Velcro tape to fasten the tower to the track, e.g. from a building supplies store
Length ~1 m
Width ~20 mm

1 The Post Office specifies the height as 20 cm. We measured it and came up with 19 cm.

Fire Fighting Challenge

Field border

Black industrial cloth tape, such as Nichiban Premium Cloth Tape 50 m x 25 mm, black%
Width 2.5 cm
White industrial cloth tape, such as Nichiban Premium Cloth Tape 50 m x 75 mm, white%
Width 7.5 cm

Candle markings

  • Once you have received your registration confirmation and the registration fee has been paid, a vinyl sheet with the candle markings can be picked up at Innocel, Marie-Curie-Str. 8, 79539 Lörrach.
  • Unfortunately, we are unable to publish the print file for legal reasons.
  • For a description of the markings, go to the RoboRAVE International Website

Candles

Drainpipe coupling as the base, such as Marley HT Push-fit Coupling
Diameter 88 mm
Length ~12 cm
Drainpipe as the body, such as Marley HT Pipe
Diameter 88 mm
Length 15 cm
Drainpipe plug on the end, such as Marley HT Plug
Diameter 88 mm
Tealight cup made of stainless steel, such as Stainless Steel Tealight Cups, 4-pack
Diameter 3.8 cm
Height 1.8 cm

The drainpipe is inserted into the coupling and the plug is used to close off the top. The tealight cup is glued to the plug. If necessary, the tealight is replaced before the next round begins.

Moveable walls

Strip of wood as a base, like this square moulding
Width 3.5 cm
